Modeling with Text

OCRUG Hackathon 2023

Schedule

• 09:30 AM – 10:15 AM: Text Mining

• 10:15 AM - 10:30 AM: Break

• 10:30 AM - 11:15 AM: Modeling with Text

Supervised Modeling using text

• Text like this can be used for supervised or predictive modeling

• We can build both regression and classification models with text data

• We can use the ways language exhibits organization to create features for modeling

Modeling Packages

library(tidymodels)
library(textrecipes)
library(readr)

tidymodels is a collection of packages for modeling and machine learning using tidyverse principles

textrecipes extends the recipes package to handle text preprocessing

Problem statement

How much money were the grant awarded?

We will try to answer this question based on the text field alone

We will ignore that there is a time-component to the data for simplicity

This is a regression task

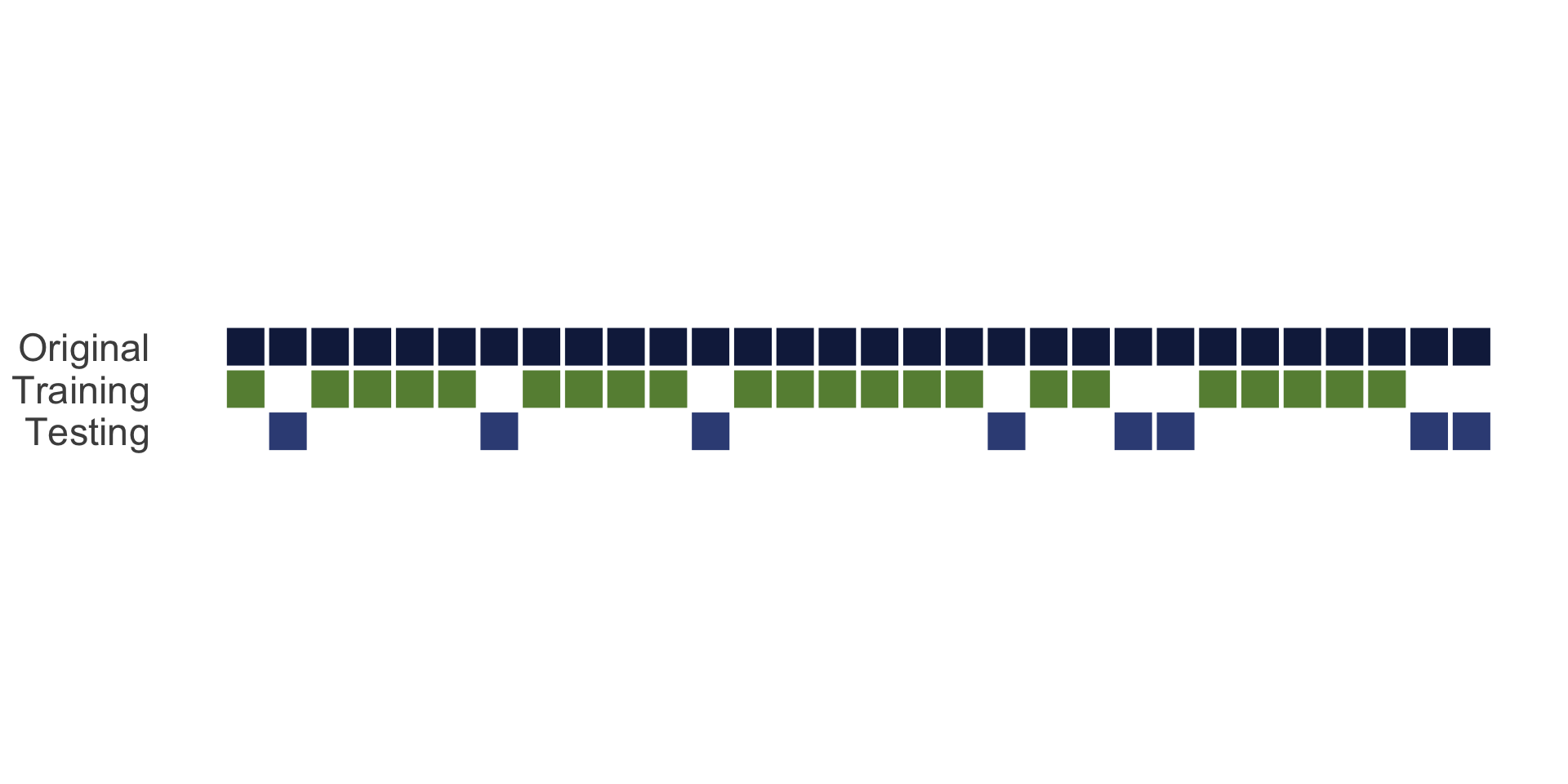

Data splitting

The testing set is a precious resource which can be used only once

Data splitting

Using the {yardstick} package allows us to split the data correctly

grants <- read_csv("data/grants.csv.gz", col_types = "cifc")
grants$amount <- log(grants$amount)

set.seed(1234)

# Make things run faster
grants <- slice_sample(grants, n = 1000)

grants_split <- initial_split(grants)
grants_training <- training(grants_split)
grants_testing <- testing(grants_split)

What mistake have we made already?

We did EDA on the whole dataset

By not restricting to training set -> data leakage

Data preprocessing

And feature engineering

Flexible and reproducible preprocessing framework

How to build a recipe

1. Start the recipe()
2. Define the variables involved
3. Describe preprocessing step-by-step

Building base recipe

Start with recipe() to define outcome and predictors

recipe(amount ~ abstract, data = grants_training)

── Recipe ────────────────────────────────────────────────────

── Inputs

Number of variables by role

outcome:   1
predictor: 1

recipes - tokenization

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract)

"ensuring" "healthy" "lives" "and" "promoting" "well" "being ...
"atmospheric" "particles" "also" "often" "referred" "as" "ae ...
"new" "gene" "regulation" "is" "a" "key" "source" "of" "new" ...
"most" "biological" "processes" "in" "the" "human" "body" "a ...
"background" "and" "rationale" "ostracism" "the" "painful" " ...
"the" "use" "of" "bacterial" "viruses" "for" "the" "treatmen ...

recipes - stop words

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball")

"ensuring" "healthy" "lives" "promoting" "well" "global" "pr ...
"atmospheric" "particles" "also" "often" "referred" "aerosol ...
"new" "gene" "regulation" "key" "source" "new" "traits" "inn ...
"biological" "processes" "human" "body" "driven" "ability" " ...
"background" "rationale" "ostracism" "painful" "experience"  ...
"use" "bacterial" "viruses" "treatment" "infectious" "diseas ...

recipes - stemming

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract)

"ensur" "healthi" "live" "promot" "well" "global" "prioriti" ...
"atmospher" "particl" "also" "often" "refer" "aerosol" "atmo ...
"new" "gene" "regul" "kei" "sourc" "new" "trait" "innov" "bi ...
"biolog" "process" "human" "bodi" "driven" "abil" "protein"  ...
"background" "rational" "ostrac" "pain" "experi" "exclud" "i ...
"us" "bacteri" "virus" "treatment" "infecti" "diseas" "phage ...

recipes - Removing low frequency words

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_tokenfilter(abstract, max_tokens = 250)

"well" "global" "develop" "goal" "behavior" "aim" "well" "ap ...
"also" "scienc" "context" "organ" "associ" "regul" "state" " ...
"new" "gene" "regul" "kei" "new" "gene" "regul" "studi" "exp ...
"process" "human" "protein" "interact" "protein" "protein" " ...
"experi" "effect" "life" "perform" "research" "studi" "exper ...
"us" "treatment" "diseas" "propos" "howev" "import" "knowled ...

recipes - Getting counts!

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_tokenfilter(abstract, max_tokens = 250) |>
  step_tf(abstract)

     1 2 3 activ adapt addit address advanc affect ag aim
[1,] 0 0 0     1     0     0       0      0      0  0   2
[2,] 0 0 0     2     1     2       1      0      1  0   1
[3,] 0 0 0     3     4     3       0      0      0  0   3
[4,] 0 0 0     0     0     0       0      0      0  0   0

recipes - Indicators

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_tokenfilter(abstract, max_tokens = 250) |>
  step_tf(abstract, weight_scheme = "binary")

     1 2 3 activ adapt addit address advanc affect ag aim
[1,] 0 0 0     1     0     0       0      0      0  0   1
[2,] 0 0 0     1     1     1       1      0      1  0   1
[3,] 0 0 0     1     1     1       0      0      0  0   1
[4,] 0 0 0     0     0     0       0      0      0  0   0

recipes - TF-IDF

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_tokenfilter(abstract, max_tokens = 250) |>
  step_tfidf(abstract)

     1 2 3 activ adapt addit address advanc affect ag   aim
[1,] 0 0 0 0.012 0.000 0.000   0.000      0  0.000  0 0.019
[2,] 0 0 0 0.020 0.017 0.027   0.012      0  0.015  0 0.008
[3,] 0 0 0 0.028 0.061 0.037   0.000      0  0.000  0 0.022
[4,] 0 0 0 0.000 0.000 0.000   0.000      0  0.000  0 0.000

recipes - TF-IDF + n-grams

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_ngram(abstract, num_tokens = 2, min_num_tokens = 1) |>
  step_tokenfilter(abstract, max_tokens = 250) |>
  step_tfidf(abstract)

     1_2 19_pandem 6_month achiev_goal address_question aim_1
[1,]   0         0       0           0                0     0
[2,]   0         0       0           0                0     0
[3,]   0         0       0           0                0     0
[4,]   0         0       0           0                0     0

recipes - Hashing + n-grams

recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_ngram(abstract, num_tokens = 2, min_num_tokens = 1) |>
  step_texthash(text, num_terms = 256)

     001 002 003 004 005 006 007 008 009 010 011 012 013 014
[1,]   0   0   1  -1   2   0   0   0   0   0  -1   2  -2  -1
[2,]  -1  -1   0   0  -2  -2   0  -1   0  -2  -1   1   1  -1
[3,]   1   3  -1   1   2  -1   1   0   7   0  -2  -2  -1   0
[4,]   0   1   0   0  -2   0  -1  -1   1   0   1   0   0   1

Selecting a recipe

I want to start with the Tf-IDF version

rec_spec <- recipe(amount ~ abstract, data = grants_training) |>
  step_tokenize(abstract) |>
  step_stopwords(abstract, stopword_source = "snowball") |>
  step_stem(abstract) |>
  step_tokenfilter(abstract, max_tokens = 250) |>
  step_tfidf(abstract)

rec_spec

Selecting a recipe

── Recipe ────────────────────────────────────────────────────

── Inputs

Number of variables by role

outcome:   1
predictor: 1

── Operations

• Tokenization for: abstract

• Stop word removal for: abstract

• Stemming for: abstract

• Text filtering for: abstract

• Term frequency-inverse document frequency with: abstract

What kind of models work well for text?

Remember that text data is sparse! 😮

• Regularized linear models (glmnet)
• Support vector machines
• naive Bayes
• Tree-based models like random forest?

To specify a model in tidymodels

1. Pick a model

2. Set the mode (if needed)

3. Set the engine

All available models are listed at https://tidymodels.org/find/parsnip

set_mode()

Once you have selected a model type, you can select the mode

decision_tree() |>
  set_mode(mode = "regression")

Decision Tree Model Specification (regression)

Computational engine: rpart

decision_tree() |>
  set_mode(mode = "classification")

Decision Tree Model Specification (classification)

Computational engine: rpart

set_engine()

The same model can be implemented by multiple computational engines

decision_tree() |>
  set_engine("rpart")

Decision Tree Model Specification (unknown mode)

Computational engine: rpart

decision_tree() |>
  set_engine("spark")

Decision Tree Model Specification (unknown mode)

Computational engine: spark

What makes a model?

lasso_spec <- linear_reg(penalty = tune(), mixture = 1) |>
  set_mode("regression") |>
  set_engine("glmnet")

lasso_spec

Linear Regression Model Specification (regression)

Main Arguments:
  penalty = tune()
  mixture = 1

Computational engine: glmnet

Parameters and… hyperparameters?

Some model parameters can be learned from data during fitting/training

Some CANNOT 😱

These are hyperparameters of a model, and we estimate them by training lots of models with different hyperparameters and comparing them

Grid of values

extract_parameter_set_dials(lasso_spec)

Collection of 1 parameters for tuning

 identifier    type    object
    penalty penalty nparam[+]

param_grid <- extract_parameter_set_dials(lasso_spec) |>
  grid_regular(levels = c(penalty = 50))

Grid of values

We can select a high number of penalty values at the same time because {glmnet} fits them all at the same time

param_grid

# A tibble: 50 × 1
    penalty
      <dbl>
 1 1   e-10
 2 1.60e-10
 3 2.56e-10
 4 4.09e-10
 5 6.55e-10
 6 1.05e- 9
 7 1.68e- 9
 8 2.68e- 9
 9 4.29e- 9
10 6.87e- 9
# ℹ 40 more rows

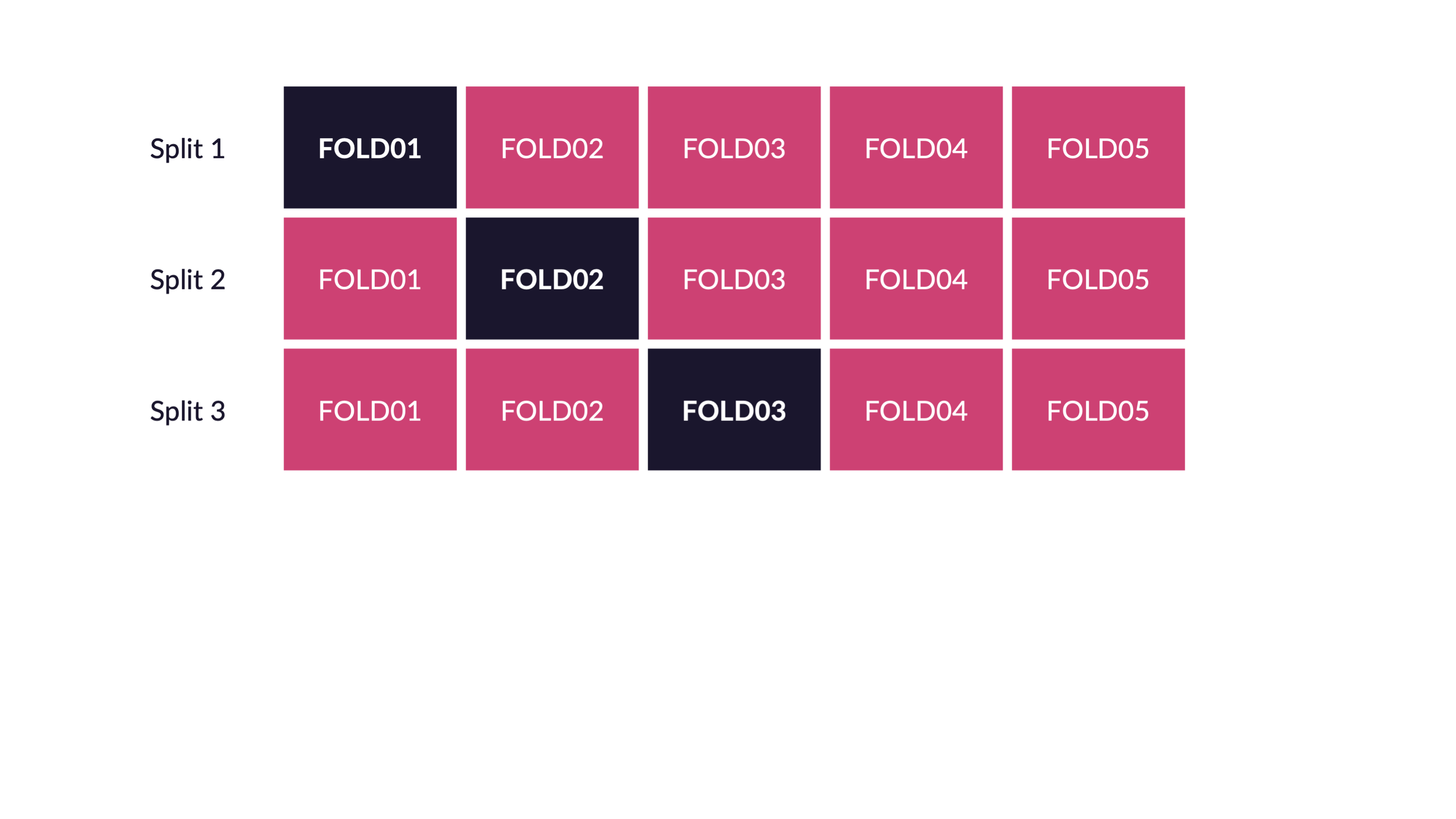

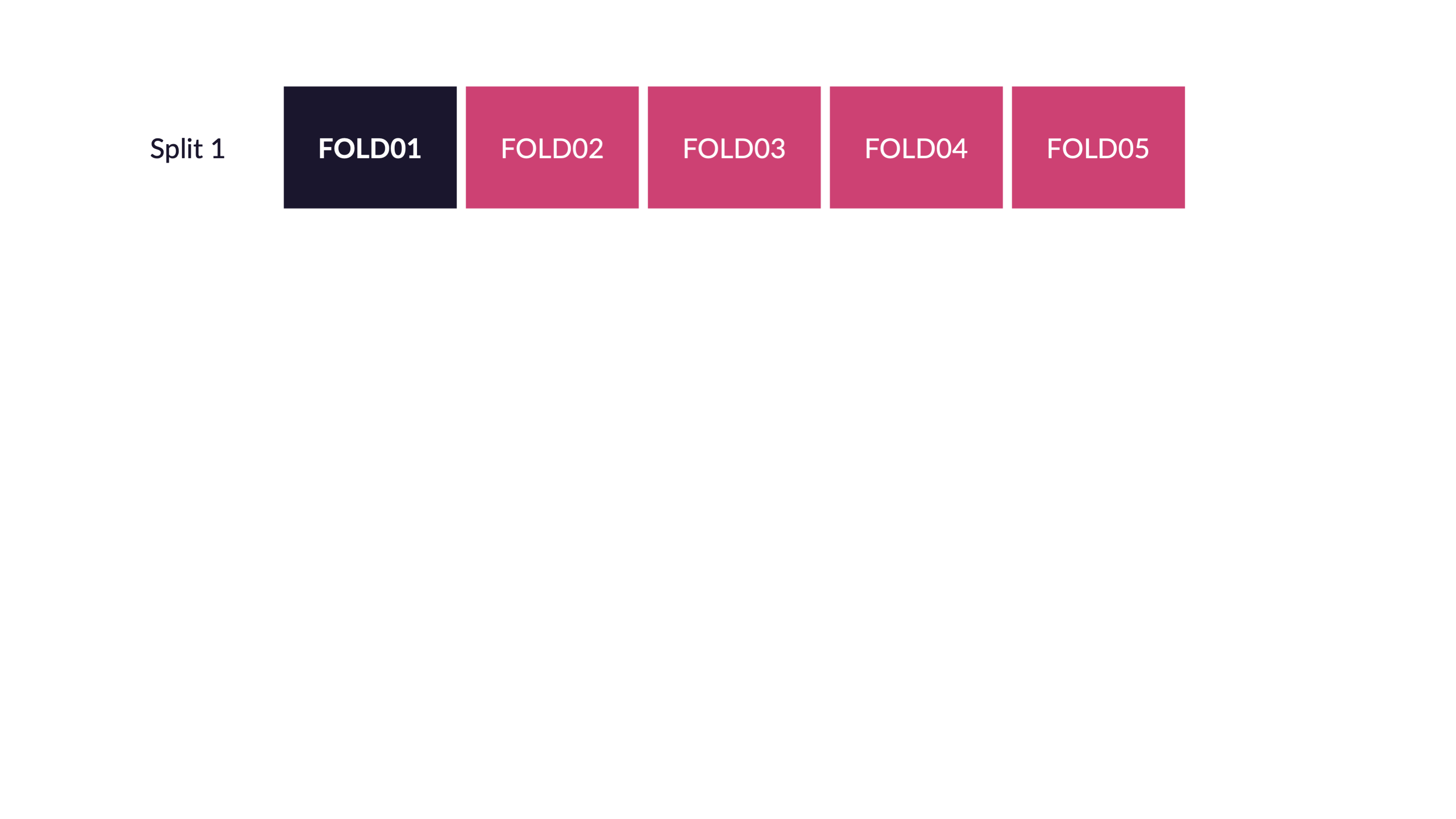

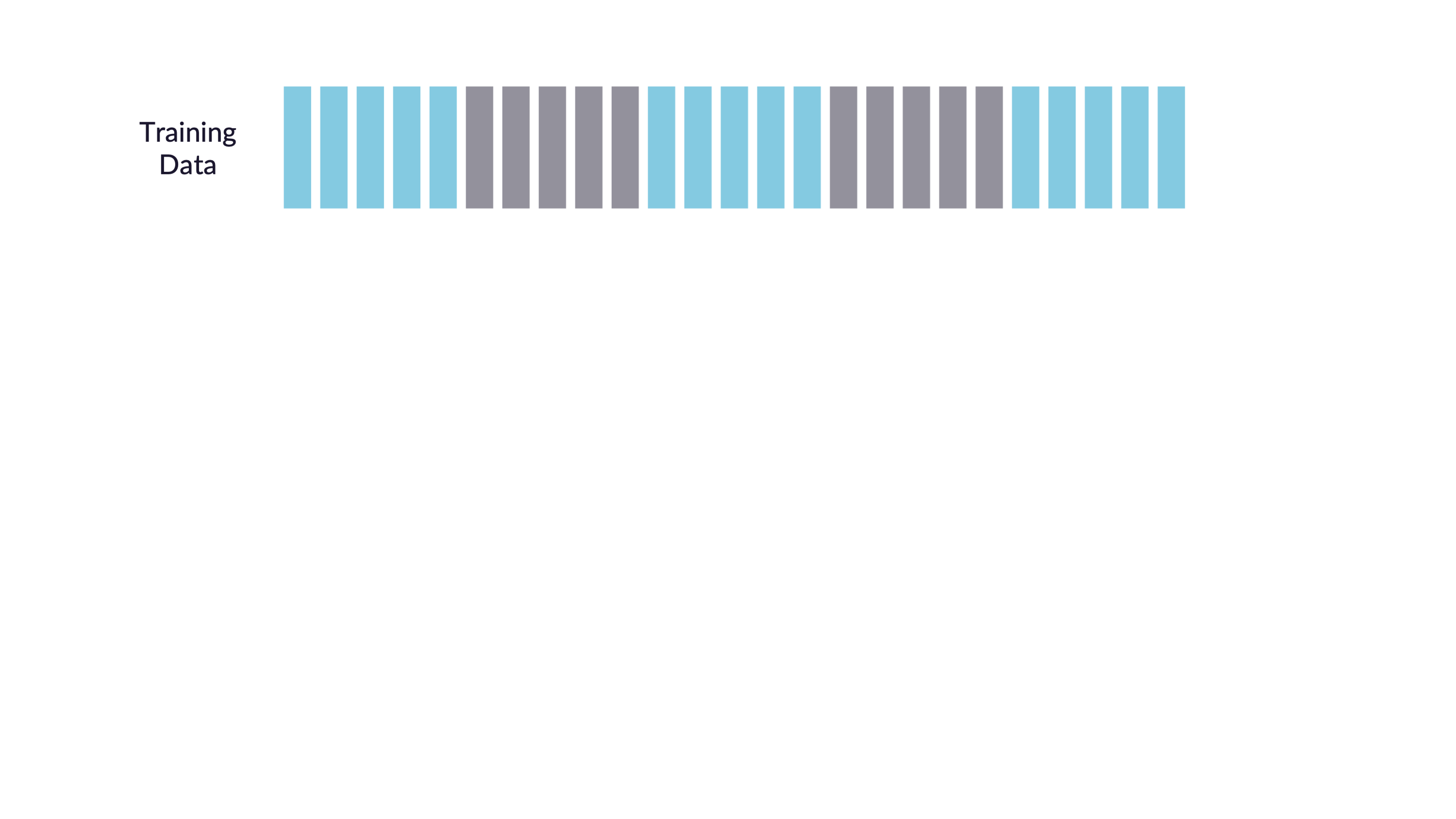

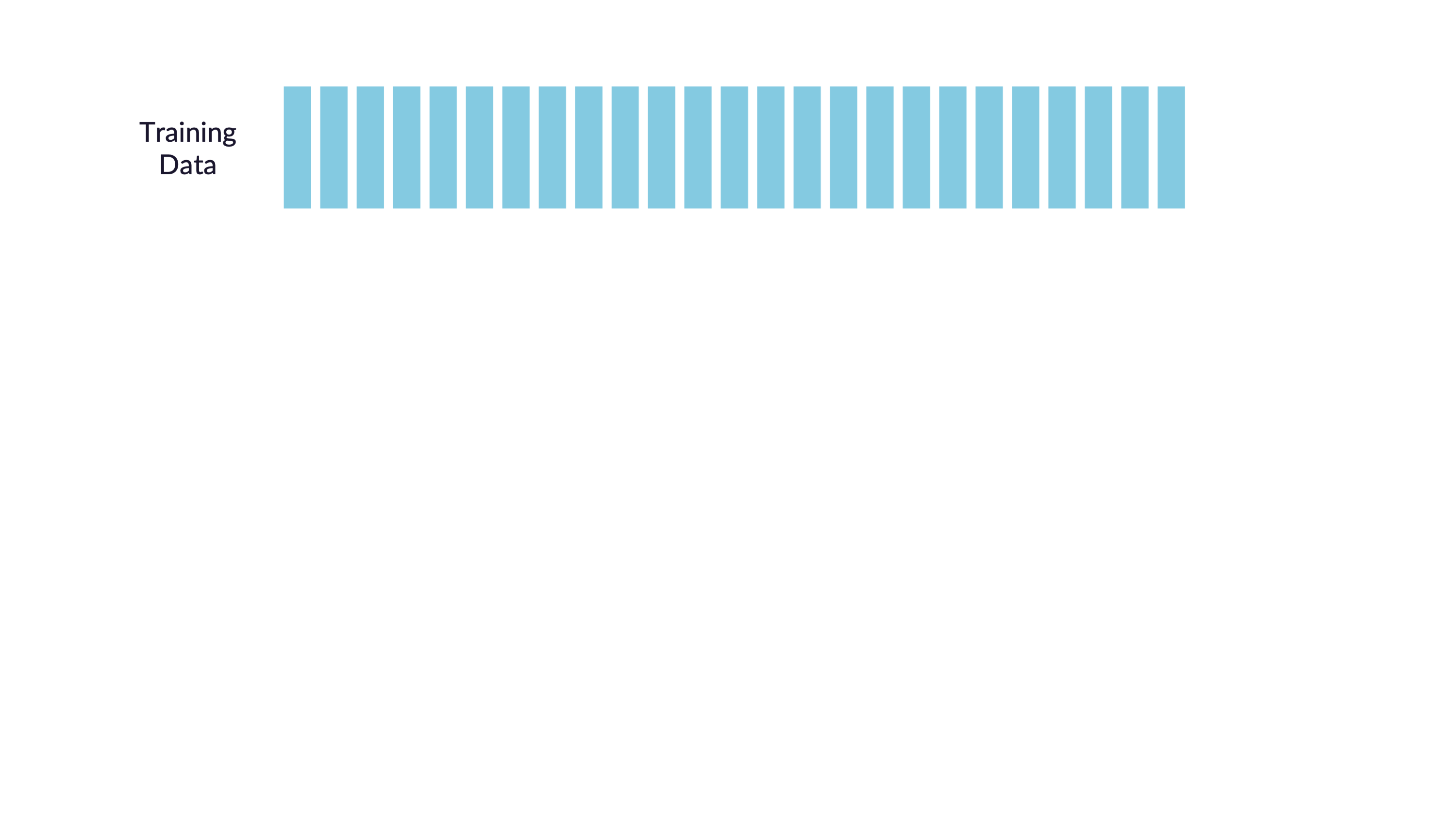

Spend your data budget

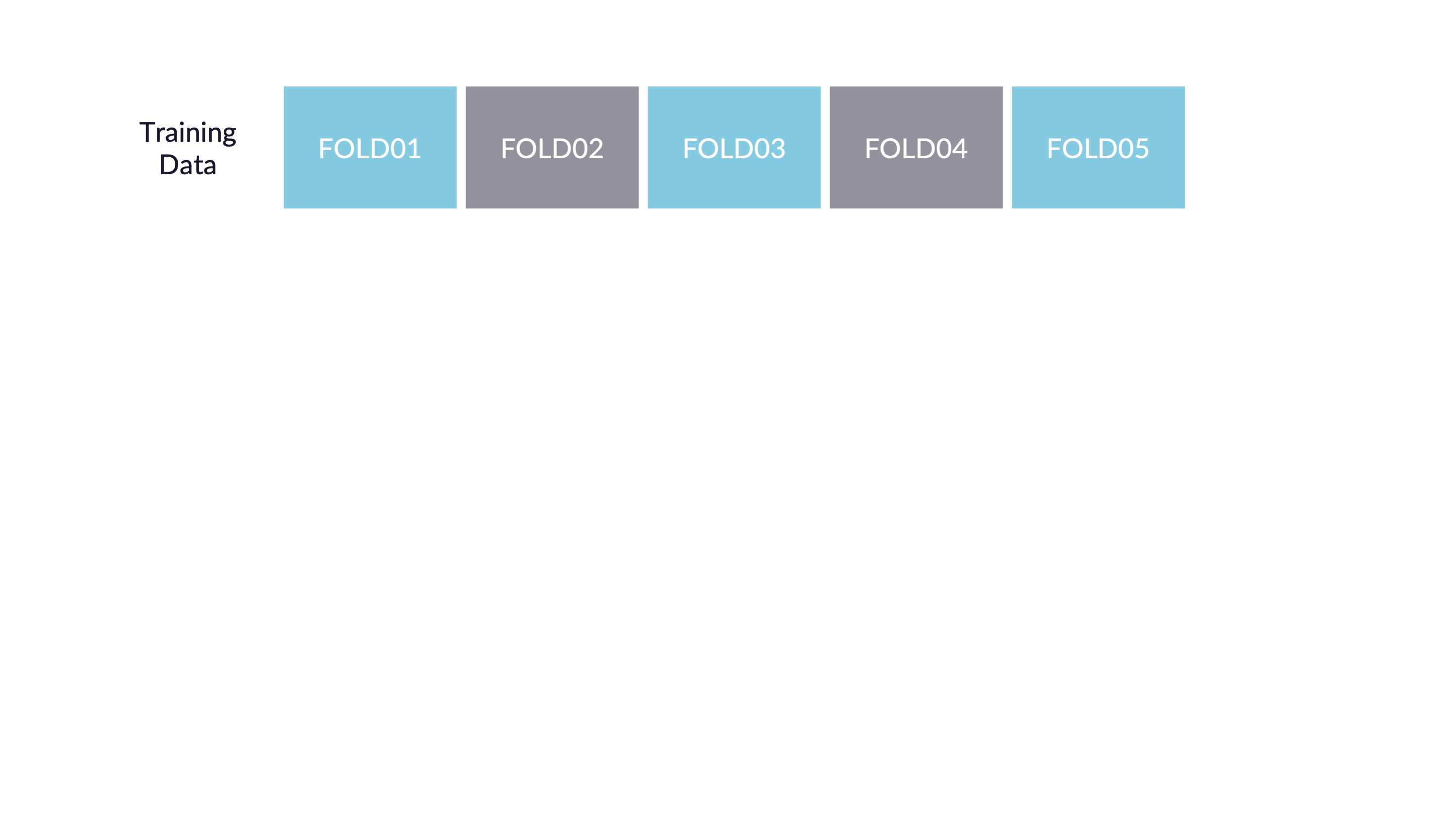

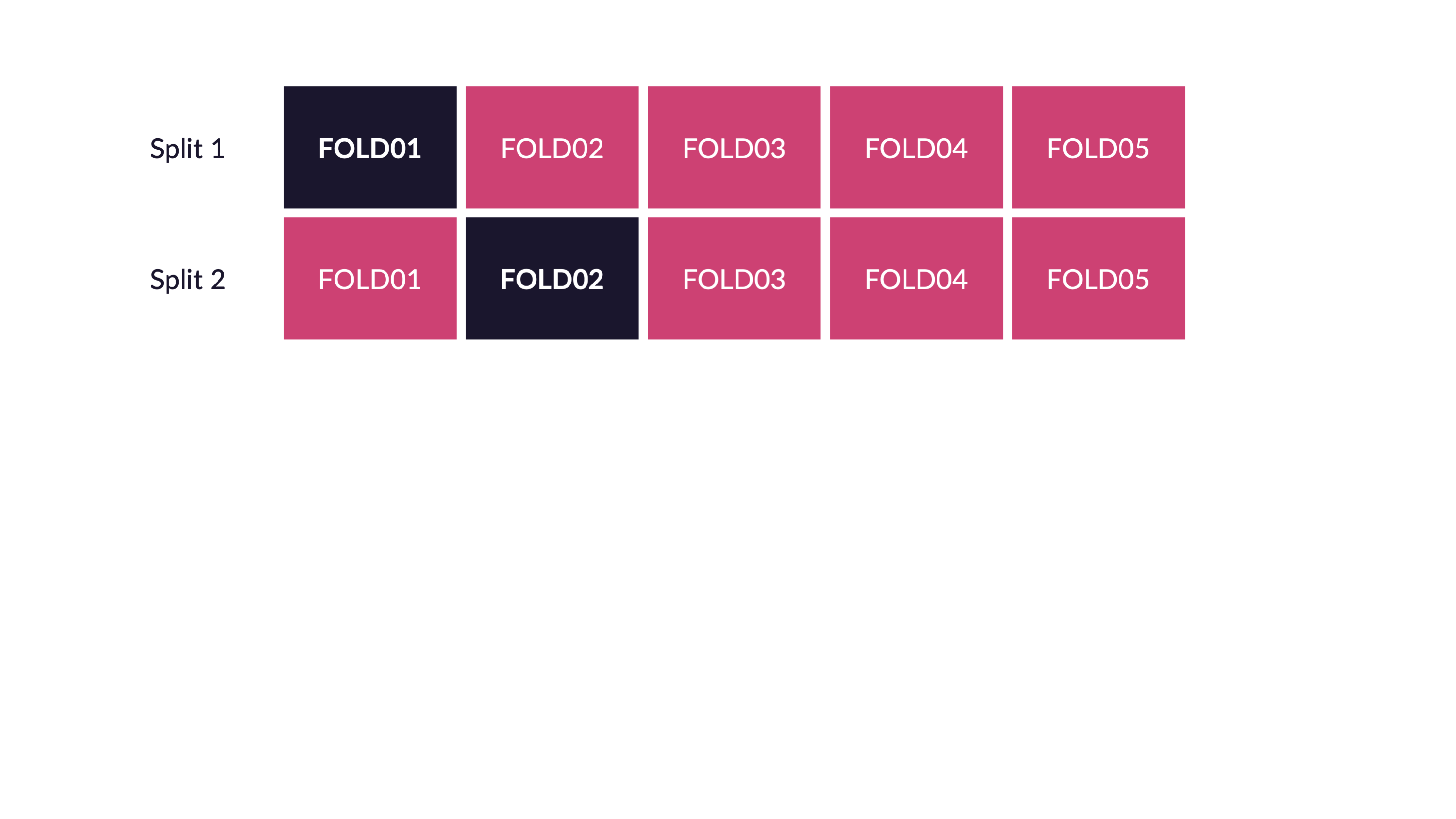

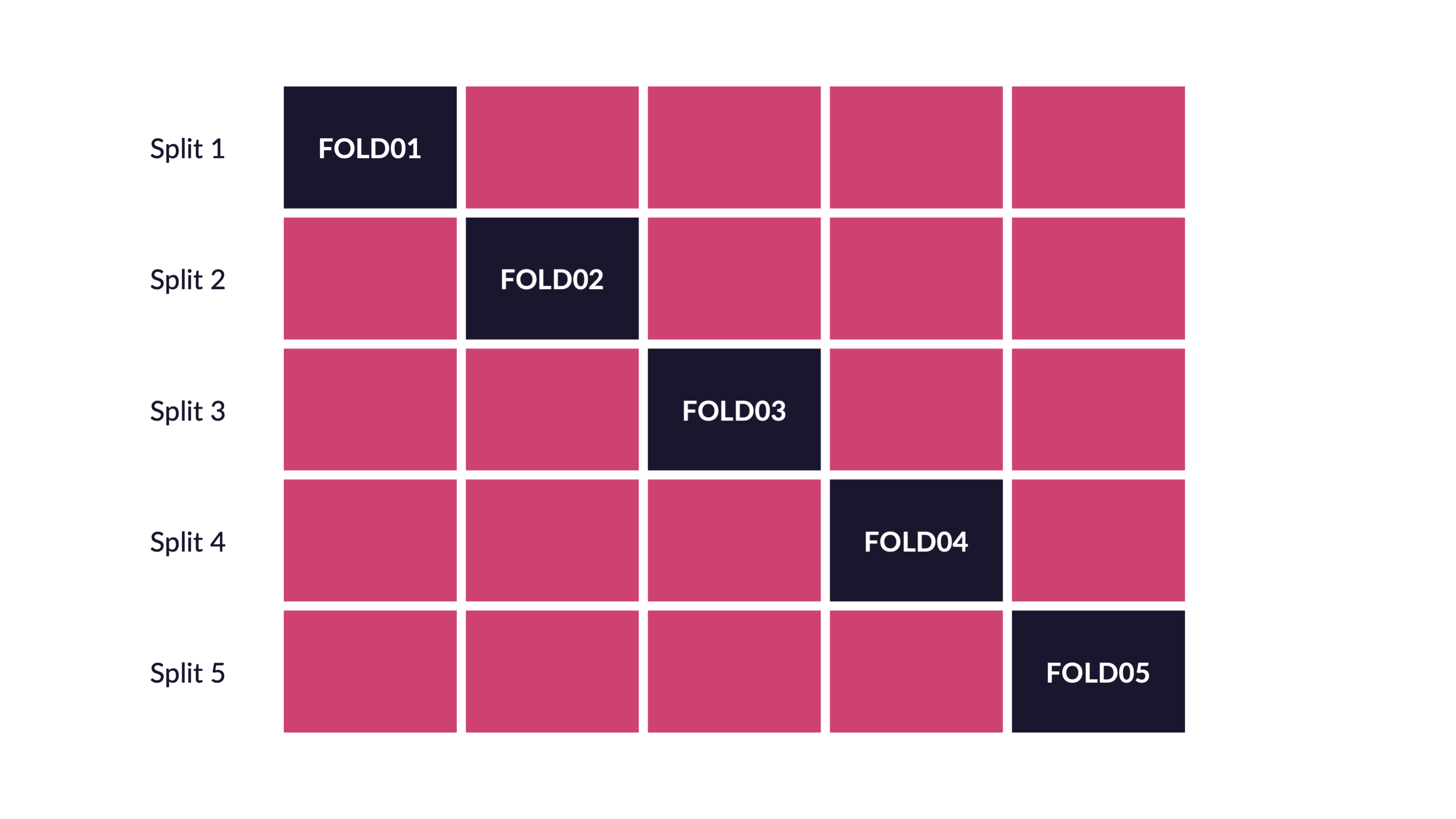

We can do 5-fold cross-validation

set.seed(123)
grants_folds <- vfold_cv(grants_training, v = 5)
grants_folds

#  5-fold cross-validation
# A tibble: 5 × 2
  splits            id
  <list>            <chr>
1 <split [600/150]> Fold1
2 <split [600/150]> Fold2
3 <split [600/150]> Fold3
4 <split [600/150]> Fold4
5 <split [600/150]> Fold5

Spend your data wisely to create simulated validation sets

Create a workflow

When we create a workflow, we combine the recipe with the model specification to be able to fit them as once

wf_spec <- workflow() |>
  add_recipe(rec_spec) |>
  add_model(lasso_spec)

wf_spec

Create a workflow

══ Workflow ══════════════════════════════════════════════════
Preprocessor: Recipe
Model: linear_reg()

── Preprocessor ──────────────────────────────────────────────
5 Recipe Steps

• step_tokenize()
• step_stopwords()
• step_stem()
• step_tokenfilter()
• step_tfidf()

── Model ─────────────────────────────────────────────────────
Linear Regression Model Specification (regression)

Main Arguments:
  penalty = tune()
  mixture = 1

Computational engine: glmnet

Time to tune! ⚡

set.seed(42)
lasso_rs <- tune_grid(
  wf_spec,
  resamples = grants_folds,
  grid = param_grid,
  control = control_grid(verbose = TRUE)
)

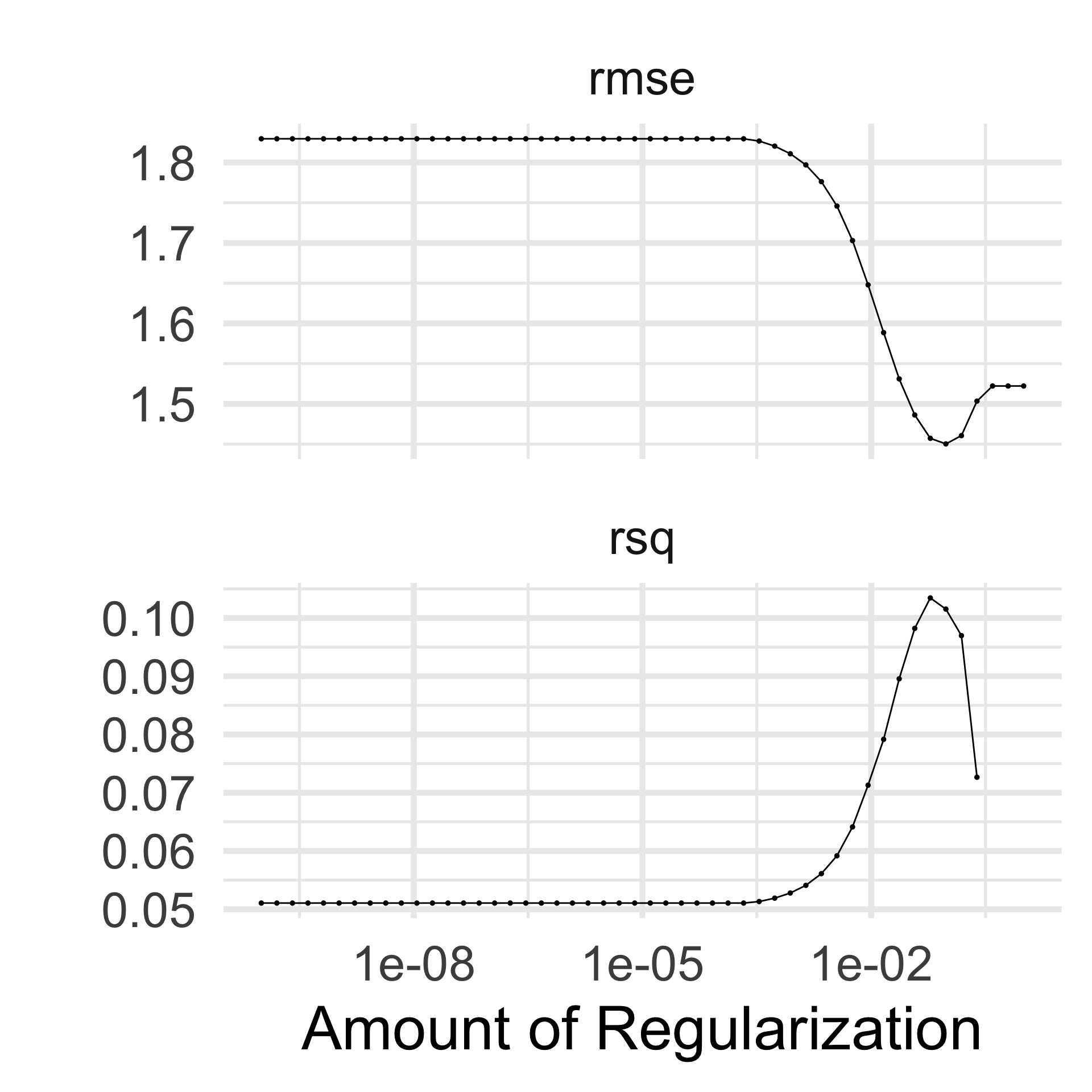

Look at the tuning results 👀

The result comes as a tibble, expanded from grants_folds

lasso_rs

# Tuning results
# 5-fold cross-validation
# A tibble: 5 × 4
  splits            id    .metrics           .notes
  <list>            <chr> <list>             <list>
1 <split [600/150]> Fold1 <tibble [100 × 5]> <tibble [1 × 3]>
2 <split [600/150]> Fold2 <tibble [100 × 5]> <tibble [1 × 3]>
3 <split [600/150]> Fold3 <tibble [100 × 5]> <tibble [1 × 3]>
4 <split [600/150]> Fold4 <tibble [100 × 5]> <tibble [1 × 3]>
5 <split [600/150]> Fold5 <tibble [100 × 5]> <tibble [1 × 3]>

There were issues with some computations:

  - Warning(s) x5: A correlation computation is required, but `estim...

Run `show_notes(.Last.tune.result)` for more information.

Look at the tuning results 👀

There is a whole host of helper functions to extract the information that is contained

collect_metrics(lasso_rs)

# A tibble: 100 × 7
    penalty .metric .estimator   mean     n std_err .config
      <dbl> <chr>   <chr>       <dbl> <int>   <dbl> <chr>
 1 1   e-10 rmse    standard   1.83       5  0.0685 Preproces…
 2 1   e-10 rsq     standard   0.0511     5  0.0194 Preproces…
 3 1.60e-10 rmse    standard   1.83       5  0.0685 Preproces…
 4 1.60e-10 rsq     standard   0.0511     5  0.0194 Preproces…
 5 2.56e-10 rmse    standard   1.83       5  0.0685 Preproces…
 6 2.56e-10 rsq     standard   0.0511     5  0.0194 Preproces…
 7 4.09e-10 rmse    standard   1.83       5  0.0685 Preproces…
 8 4.09e-10 rsq     standard   0.0511     5  0.0194 Preproces…
 9 6.55e-10 rmse    standard   1.83       5  0.0685 Preproces…
10 6.55e-10 rsq     standard   0.0511     5  0.0194 Preproces…
# ℹ 90 more rows

Look at the tuning results 👀

There is even an autoplot() method

autoplot(lasso_rs)

Look at the tuning results 👀

Once we see that there is a “best” model, we colect the best combination of hyper parameters

best_rmse <- lasso_rs |>
  select_best("rmse")

best_rmse

# A tibble: 1 × 2
  penalty .config
    <dbl> <chr>
1  0.0954 Preprocessor1_Model45

Update the workflow

We can update our workflow with the best performing hyperparameters.

wf_spec_final <- finalize_workflow(wf_spec, best_rmse)
wf_spec_final

This workflow is ready to go! It can now be applied to new data.

Update the workflow

══ Workflow ══════════════════════════════════════════════════
Preprocessor: Recipe
Model: linear_reg()

── Preprocessor ──────────────────────────────────────────────
5 Recipe Steps

• step_tokenize()
• step_stopwords()
• step_stem()
• step_tokenfilter()
• step_tfidf()

── Model ─────────────────────────────────────────────────────
Linear Regression Model Specification (regression)

Main Arguments:
  penalty = 0.0954095476349996
  mixture = 1

Computational engine: glmnet

fit the workflow

We can update our workflow with the best performing hyperparameters.

wf_fit_final <- fit(wf_spec, data = grants_training)
wf_fit_final

══ Workflow [trained] ════════════════════════════════════════
Preprocessor: Recipe
Model: linear_reg()

── Preprocessor ──────────────────────────────────────────────
5 Recipe Steps

• step_tokenize()
• step_stopwords()
• step_stem()
• step_tokenfilter()
• step_tfidf()

── Model ─────────────────────────────────────────────────────

Call:  glmnet::glmnet(x = maybe_matrix(x), y = y, family = "gaussian",      alpha = ~1)

    Df  %Dev   Lambda
1    0  0.00 0.296300
2    3  1.08 0.270000
3    5  2.89 0.246000
4    6  4.79 0.224200
5    8  6.51 0.204200
6   10  8.25 0.186100
7   15  9.99 0.169600
8   15 11.83 0.154500
9   17 13.44 0.140800
10  24 15.12 0.128300
11  33 16.95 0.116900
12  41 19.16 0.106500
13  43 21.21 0.097030
14  50 23.07 0.088410
15  57 25.00 0.080560
16  69 26.94 0.073400
17  73 28.74 0.066880
18  81 30.48 0.060940
19  84 32.05 0.055520
20  89 33.43 0.050590
21  93 34.69 0.046100
22 100 35.86 0.042000
23 111 37.01 0.038270
24 120 38.11 0.034870
25 131 39.14 0.031770
26 138 40.12 0.028950
27 146 41.04 0.026380
28 153 41.84 0.024040
29 154 42.54 0.021900
30 159 43.14 0.019950
31 160 43.67 0.018180
32 165 44.13 0.016570
33 172 44.57 0.015090
34 177 44.94 0.013750
35 181 45.27 0.012530
36 181 45.55 0.011420
37 185 45.78 0.010400
38 193 45.99 0.009480
39 198 46.17 0.008638
40 200 46.33 0.007870
41 206 46.47 0.007171
42 209 46.60 0.006534
43 210 46.70 0.005954
44 212 46.79 0.005425
45 213 46.87 0.004943
46 214 46.94 0.004504

...
and 30 more lines.

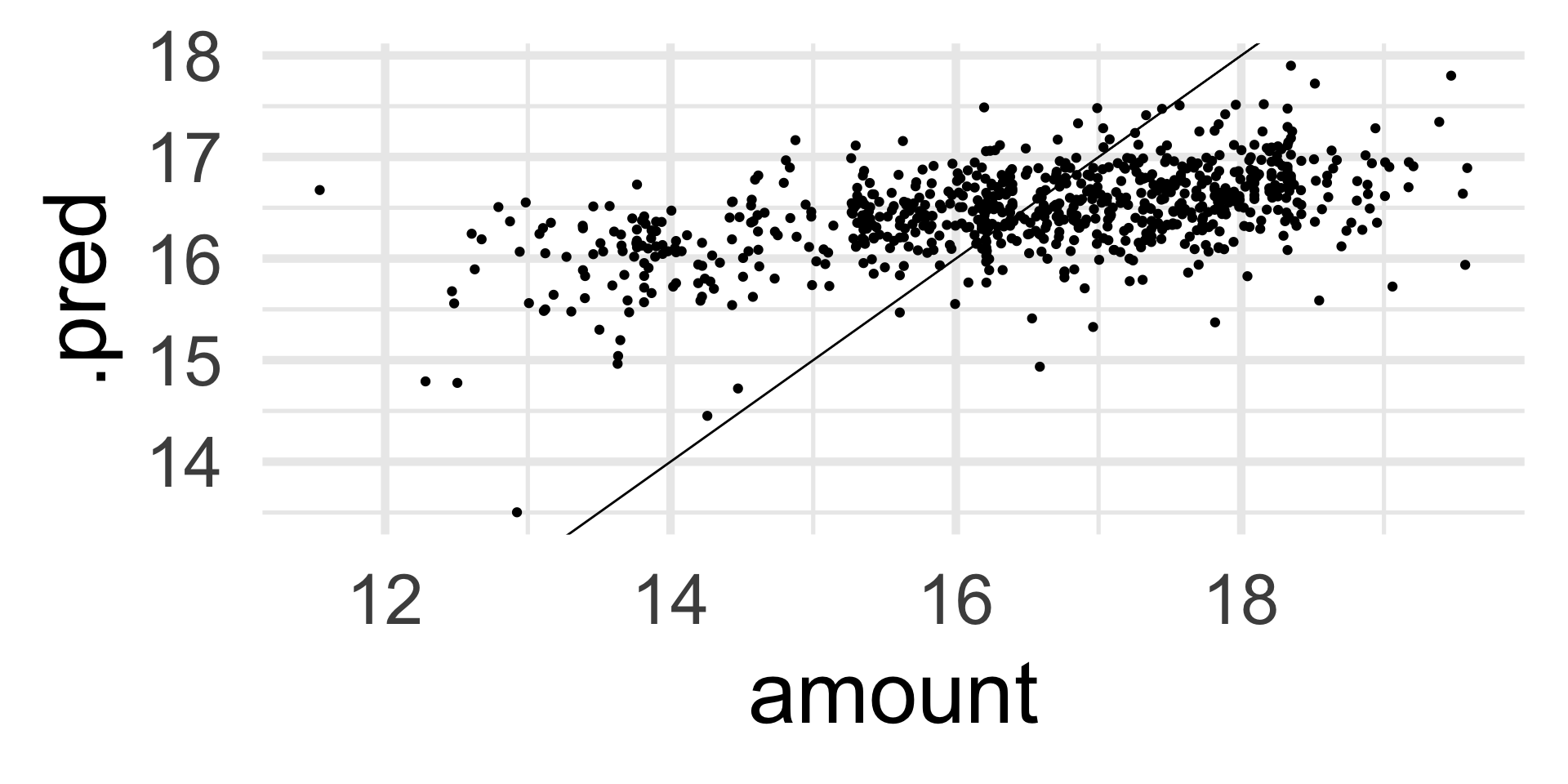

Assessing performance

We are not doing great

predict(wf_fit_final, new_data = grants_training, penalty = best_rmse$penalty) |>
  bind_cols(grants_training) |>
  ggplot(aes(amount, .pred)) +
  geom_point() +
  geom_abline(slope = 1, intercept = 0)

Assessing performance

Final fit

We will now use last_fit() to fit our model one last time on our training data and evaluate it on our testing data.

final_fit <- last_fit(
  wf_spec_final,
  grants_split
)

Notice that this is the first and only time we have used our testing data

Evaluate on the test data

final_fit %>%
  collect_metrics()

# A tibble: 2 × 4
  .metric .estimator .estimate .config
  <chr>   <chr>          <dbl> <chr>
1 rmse    standard       1.48  Preprocessor1_Model1
2 rsq     standard       0.155 Preprocessor1_Model1

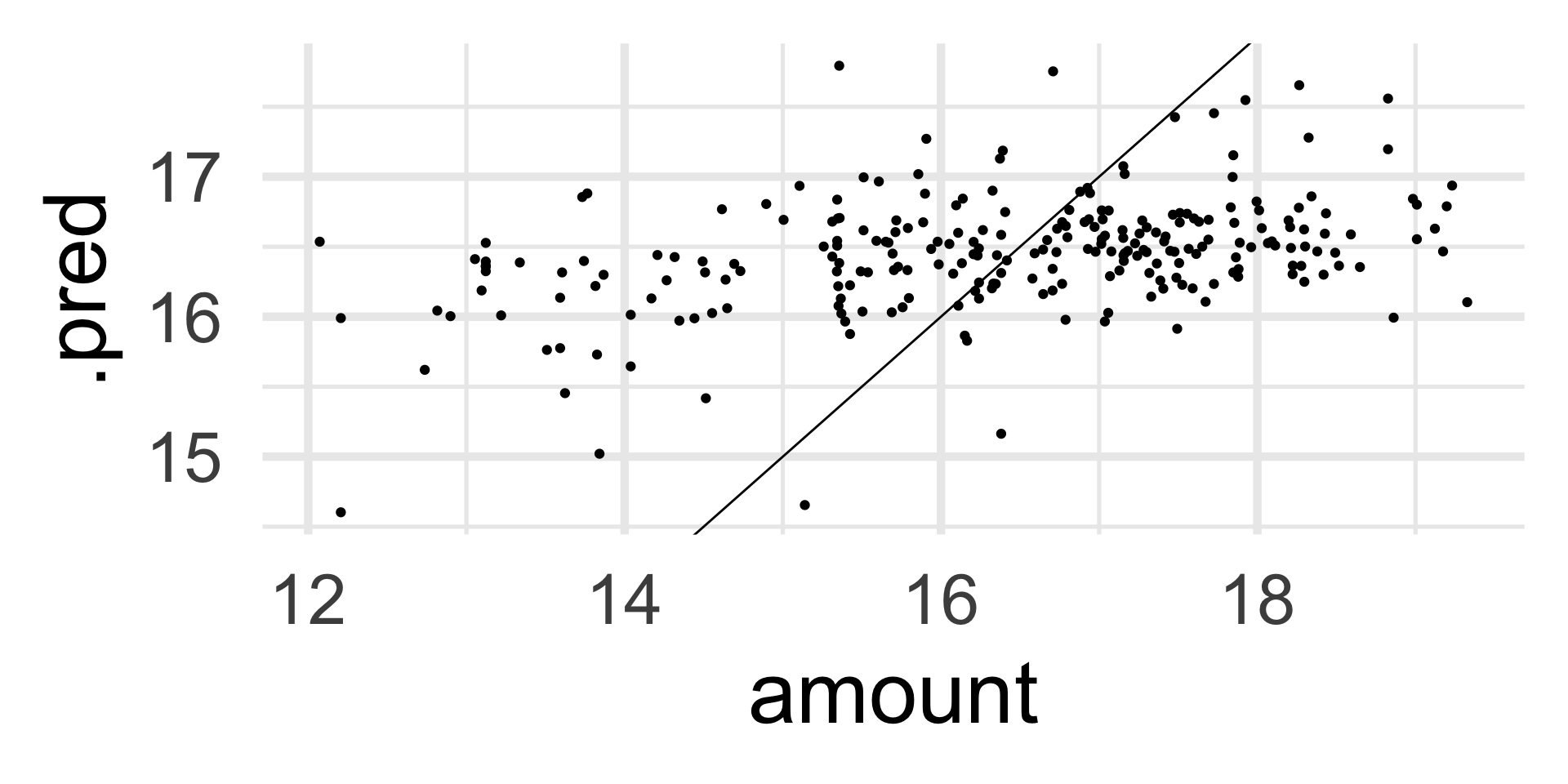

Evaluate on the test data

final_fit |>
  collect_predictions() |>
  ggplot(aes(amount, .pred)) +
  geom_point() +
  geom_abline(slope = 1, intercept = 0)

Evaluate on the test data

Another Book

smltar.com

by Julia Silge and your truly
